1000W 120V industrial SUS 316 oil immersion flange tubular heater

FOB Reference Price:Get Latest Price
$15.00 - $35.00 / Piece | 10 Piece/Pieces (Min. Order)
Shipping:
Support Sea freight
Report Suspicious Activity
Overview
Quick Details
Type:
Immersion Heater
Power Source:
Electric
Dimension(L*W*H):
Custom Size
Weight:
1kg/pc
Condition:
New
Place of Origin:
Jiangsu, China
Brand Name:
XR
Voltage:
120V
Power(W):
1000W
Certification:
ISO9001
Item:
1000W 120V industrial SUS 316 oil immersion flange tubular heater
Brand Name::
XR
Material:
Stainless steel/Iron/Incoloy 800
Dimension:
Custom Size
Wattage Density:
2-30W/cm2
Heating Wire:
NiCr80/20
Insulation:
High Purity MgO
Thread:
With or w/o
Thermocouple:
K or J
Wire length:
300mm
After-sales Service Provided:
Overseas third-party support available
Warranty:
6000hours
Supply Ability
Supply Ability:
100000 Piece/Pieces per Month
Packaging & Delivery
Packaging Details
Standard safe carton box, plastic pallet; 1000W 120V industrial SUS 316 oil immersion flange tubular heater
Port
Shanghai
Product Description

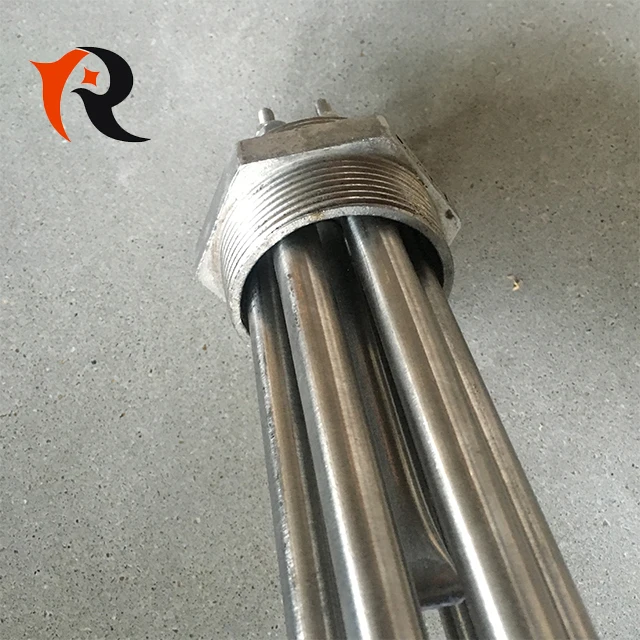

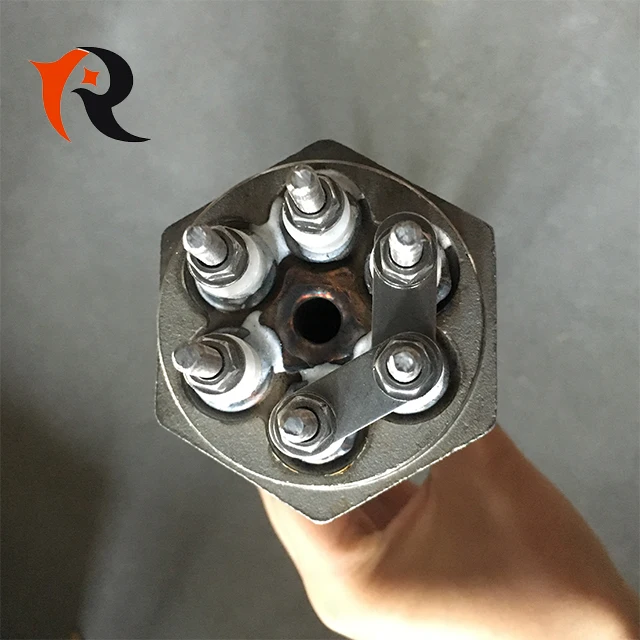

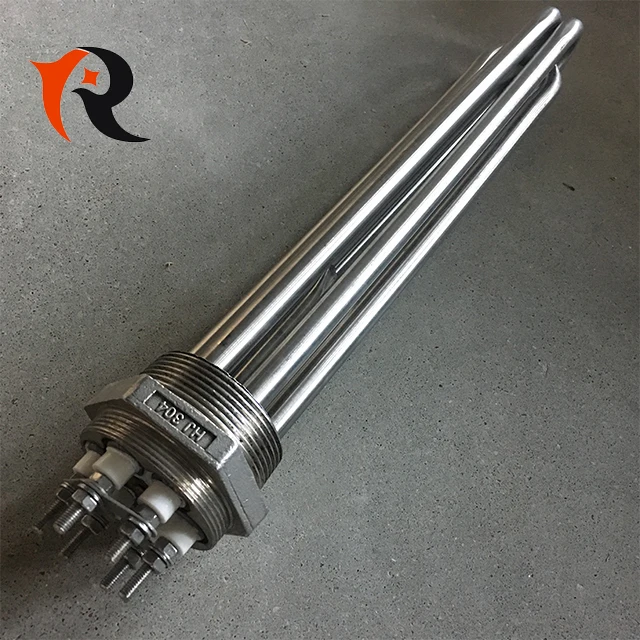

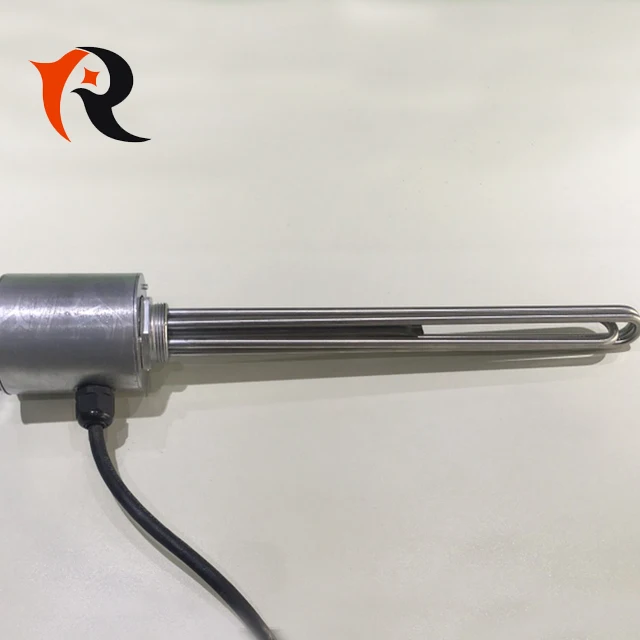

Flanged immersion heaters consist of hairpin bent tubular elements welded or brazed into a flange and provided with wiring boxes for electrical connections. Flange heaters are installed by bolting to a matching flange welded to the tank wall or nozzle. A wide selection of flange sizes, kilowatt ratings,voltages, terminal housings and sheath materials makes these heaters ideal for all types of heating applications

Tube diameter:
Φ8mm-Φ20mm
Tube Material
SS201, SS304, SS316, SS321 and INCOLOY800 etc
Insulation Material
MgO
Conductor Material:
Nichrome Resistance Wire
Wattage Density:
High/Middle/Low (5-25w/cm2)
Voltages available:
380V,240V, 220V,110V,36V,24V or 12V
Lead Connection Option:
Threaded Stud Terminal or Lead Wire
Detailed Images

Specifications

* High-Density and quality tubular heating elements


* Many diameters and length offered as standard


* Alloy sheath for high corrosion resistance

Main Features


* We support OEM order,and print Brand or Logo on surface.


* We can custom tubular heating elements specially(According to your size,voltage,power etc.)

Application

Plastic processing machinery

* Water and oil heating appliances
* Packing machineries
* Vending machines
* Dies and Tools
* Heating chemical solutions
* Ovens and Dryers
* Kitchen equipments
Order Guidance

The key questions which need to be answered before selecting a tubular heating element are:

1.What wattage and voltage will be used?

2.What is the diameter and heated length required?
3.What's the heating medium? Water or Oil heating?
4.What is maximum temperature and how long required to reach your temperature?

Our Company

Yancheng Xinrong Electronic Technology Co.,Ltd have been engaged in design and manufacturing of industrial heating system, Our company have advanced production lines and testing equipment,  who supply clients high quality goods, as well as professional R&D department and service team, who provide customers best heating solutions. Our products have been exported to Europe,  America, Asia, Mid East etc. more than 200 countries. We supply different heating element, heating equipment, and temperature measurer.
Adhering to "Quality Best, Customer First and Honesty" business philosophy, the company and domestic and foreign partner make progress together to create a better future.

Our Service

Pre-Sales Service

* Technical solutions & support.

* Sample testing support.

* View our Factory.

After-Sales Service

* Training how to instal the products, training how to use the products

* Service will be always online.

Packing & Delivery
Packaging
Size
40 (L) * 30 (W) * 30 (D)
Weight
20KGS



Packaging Details

The normal package is carton(Size: L*W*H). If export to european countries,the wooden box will be fumigated.We will use pe film for packing or pack it according to customers special request.
